恩德科技股份有限公司

Anderson Industrial Corp.

小間番号 / Booth No.: B14

No. 1498, Zhonghua Rd., Houlong TownshipMiaoli County 356003, Taiwan
TEL : +886-37-726876

主な出展物分類・名称 / Classification and Names of Main Exhibits

木工機械＞ NC加工機械 Woodworking machinery > CNC machinery

・ Smart Automation Solution

主な見どころ / Main Highlights

■ / Smart Automation Solution

Since 1972, Anderson has been a pioneer in CNC machinery—offering speed, service, and exceptional quality.

Our Smart Automation Solution, which features an advanced automatic tooling change system. It enables routing, boring, engraving, and sawing—all on one machine, in one setup. Combined with automatic loading, unloading, and labeling systems, this forms a fully automated CNC production line that requires just one operator.It’s a labor-saving, high-output solution that has won the Taiwan Excellence Award.

If you're looking to future-proof your manufacturing, we’d love to share more about how Anderson’s automation technologies can work for you.

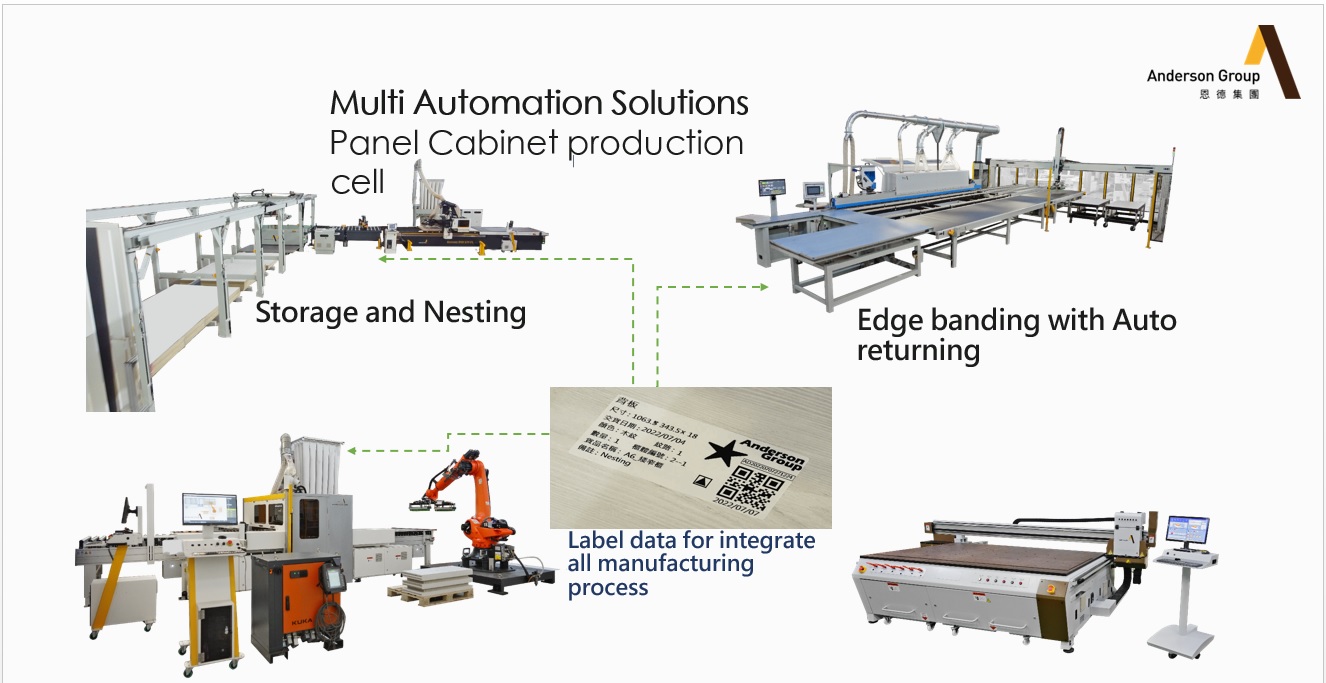

Smart Automation Solution for Panel Processing

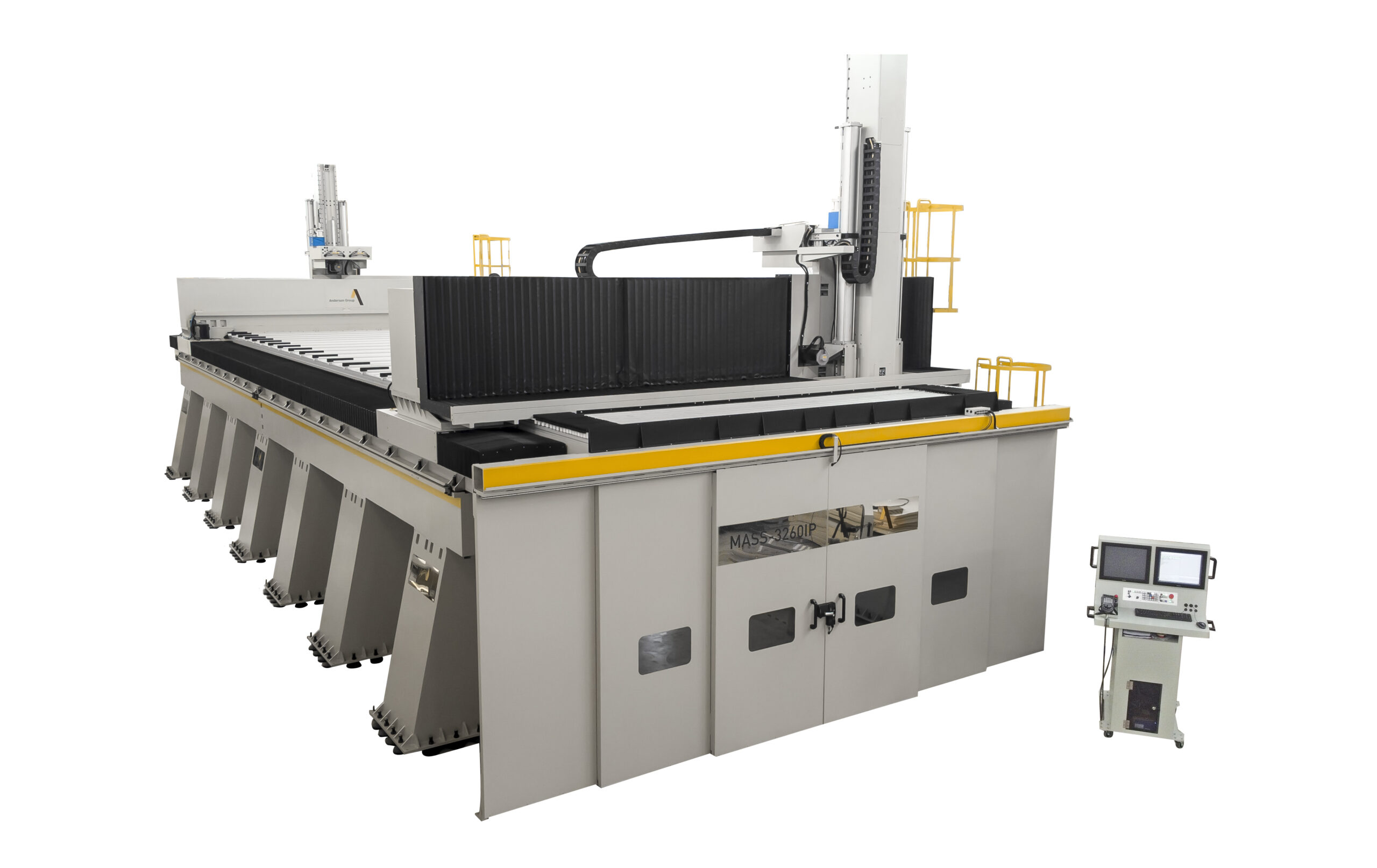

■ / MASS-3260IP Full Enclosed 5 Axis Machine

The MASS-3260IP, a large-scale gantry-type five-axis machining center with fully enclosed ceiling guard, and its dual-action column which integrates a processing spindle and a 3D printing module. The machine is controlled by a FANUC dual-system five-axis servo controller and features an aluminum alloy work panel with T-shaped grooves and vacuum suction.

Highlights:

Fully Enclosed Ceiling Guard: The machine is equipped with a fully enclosed ceiling guard.
Dual-Action Column and Modules: Features a double-action column, a processing spindle, and a 3D printing module.
FANUC Dual-System Five-Axis Servo Controller: Controlled by a FANUC dual-system five-axis servo controller.
Aluminum Alloy Panel with T-shaped Groove and Vacuum Suction: The work surface is an aluminum alloy panel with a T-shaped groove and a vacuum suction function.
Spindle and Lubrication System: Equipped with an Anderson double-arm clamping HSK-63F 20 HP water-cooled spindle motor (B axis +105 degrees/C axis +200 degrees, 1,000-24,000 RPM rotation speed) and an MQL micro oil mist cutting lubrication system.
Hidden Servo 24 Workstation Rotating Cutter Head: Features a hidden servo 24 workstation rotating cutter head with programmable automatic tool change capabilities.

■ / MASS-B 5 axis machine

The MASS B Series 5-axis CNC processing center is specialized for composite processing, featuring enclosed/open-top working space, innovative dust collection system and powerful DC rigid tapping spindle, perfectly combines safety, efficiency, and convenience, bringing optimized processing to your work.

Highlights of MASS-B:

Enclosed Working Space: prevents fine dust scattering, protecting operators’ health and maintaining a clean work environment.
Innovative Dust Collection System: captures fine dusts, micro particles and fibers during composite processing with powerful flow field.
High-torque DC Spindle: able to tapping, cutting, and high-speed finishing, suitable for non-ferrous materials metals and advanced materials.

■ / EXXACT PRO DUO

The EXXACT series has consistently been one of Anderson Group's best-selling 4-axis series CNC machines. However, we are not just rest on our laurels- with continuously research, innovate, and improve the performance of the EXXACT series. This year, we are proud to introduce the newest generation in the EXXACT family: the EXXACT PRO series.

Highlights of the EXXACT PRO DUO:

Maximum Utilization Efficiency: EXXACT PRO DUO extends the X and Y axis travel by 20%, allowing the spindle to cover the entire worktables. The Twin table configuration available with table sync lock function, able to apply multiple processing methods/techniques on a single machine
Adjustable Head Distance Variable Head Spacing (VHS): EXXACT PRO DUO comes standard with a dual-head configuration that allows adjustable head distance (VHS). By simply entering the desired distance on the AGMVP interface, the servo motors will automatically adjust the two heads to the specified distance, saving you considerable time and effort in pre-setup work.
Powerful 15 HP air-cooled spindles: The dual spindles can operate at a maximum speed of 21,000 rpm, ensuring fast and stable production quality, significantly increasing production efficiency.

• Safety Feature: EXXACT PRO series is
equipped with a full set of high-visibility safety guards and photoelectric sensors.

■ / EXXACT PRO / TC+D

Highlights of the EXXACT PRO / TC+D :

Extended X and Y-axis travel by 20%: The spindle travel can cover the entire 3,700mm x 1,600mm worktable, achieving maximum utilization efficiency.
New square-shaped positioning rods around the table perimeter: These rods make workpiece positioning & alignment more convenient and precise.
Three built-in vacuum zones on the table: These zones can be used with various programs and production methods. You just need to use the Worklist software to sequence the program, place the workpieces, and press a button to start production.
Powerful 15 HP air-cooled spindle: This spindle can operate at a maximum speed of 21,000 rpm, ensuring fast and stable production quality, significantly increasing production efficiency.
Safety Feature: EXXACT PRO series is equipped with a full set of high-visibility safety guards and photoelectric sensors.

■ / STRATOS PRO FL

Highlights of STRATOS PRO FL:

• High Efficiency Automatic Labeler: Loading, labeling & feeding operation in one stop.
• High-Speed Nesting Processing: Achieves 100 m/min gantry travel speed with dual FANUC servo motors.
• Clear View on Vital Readings: Crucial gauges readings are digitalized and faced towards operator’s side.
• Space-Saving Designs: Allowing placement close to walls or in the tight spaces.
• Optimized Workflow: Customized feeding direction (left to right/right to left) to fit workflow in facility.
• Highly Extension Flexibility: Compatible with Anderson MLS or main inventory system brands in the market.

■ / REVERSE AIR FLOW FOR STRATOS PRO FL

As the expert of customized long worktable CNC router, Anderson Group think ahead and provide smart solutions: REVERSE AIR FLOW tabletop, designed to make long/heavy panel handling effortless. With push a button on the control console, powerful airflow through worktable suction holes creates a lifting force that can easily support panels weighing 150 kg with ease. Now, just a single operator can manage heavy, long panels with minimal effort and maximum efficiency.

Highlights:

• Effortless handling of heavy, long panels

• One-person operation for best efficiency

• Reduces scratches & surface damage

• Available for stand-alone machines & full-line automation

■ / STRATOS DR

Anderson introduce STRATOS DR is a specialized router designed for custom door processing, with its automatic functions, mechanical features and powerful dual spindles, STRATOS DR allowing quick, smooth and high-quality production on various custom doors.

Highlights of STRATOS DR:

Automatic Rail Beam Adjustment: automatically and precisely beam rail positioning with the value inputs on AGMVP interface making width adjustment really simply and fast
Dual Spindles Processing: powerful liquid-cooled 20 hp spindles positioned vertically and horizontally ensures seamless five-sides processing on wooden doors without flip-over.
Offloading System: automatic off-load pusher and rolling balls on both rail beams make unloading effortless easy without damaging door surface.
Waste Conveyor: helps remove chips and residues during door processing, ensuring the machine is ready for the next production run with minimal downtime.
